How can a mid-century landmark adapt to the demands of lab research and a new innovation district?

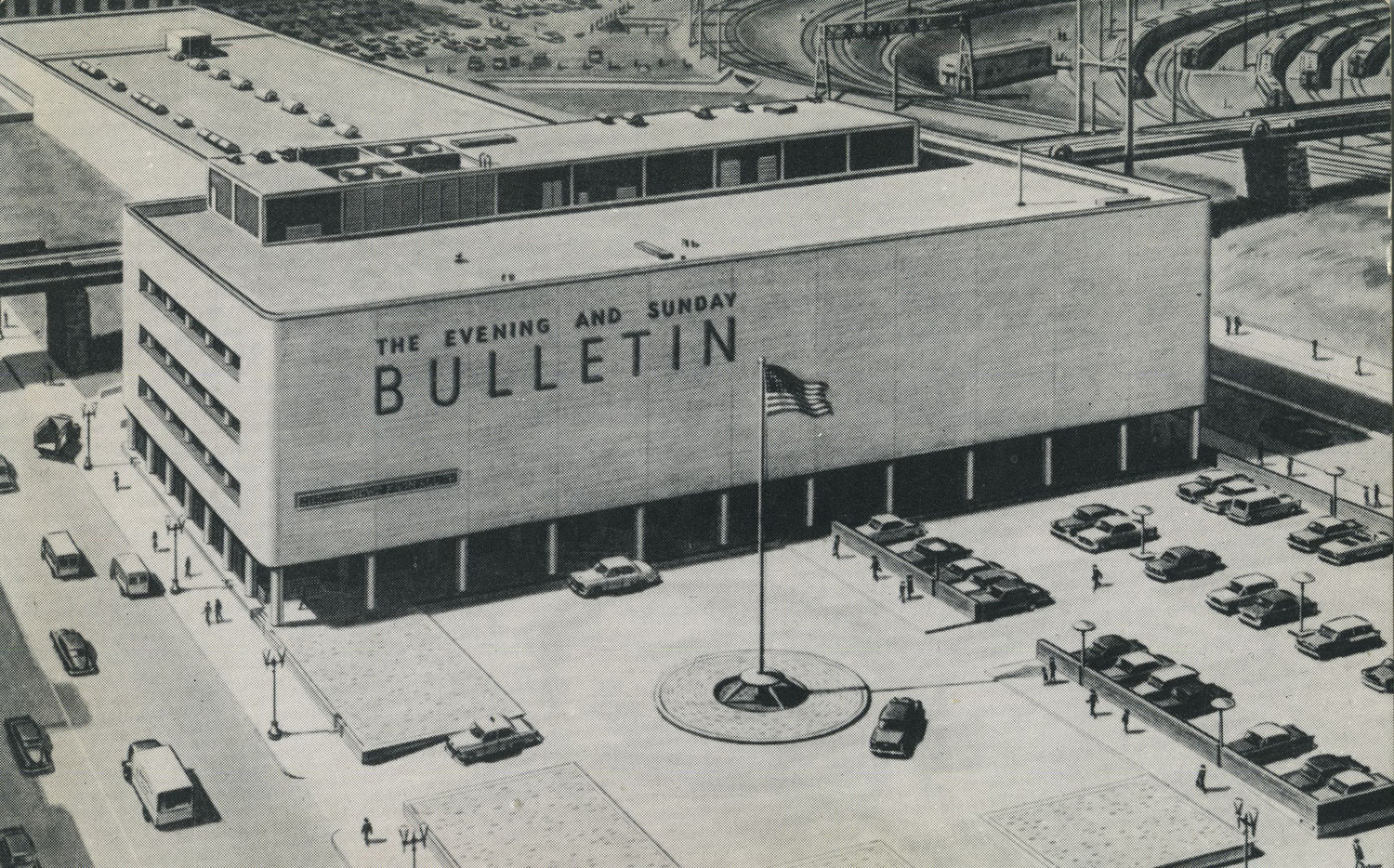

The adaptive reuse of the Bulletin Building transformed an architecturally and culturally significant 1955 structure into a contemporary life science building in Philadelphia. Originally the headquarters of The Evening Bulletin, the country’s largest circulation afternoon newspaper, George Howe’s design projected a forward-looking, state-of-the-art presence in the postwar period, reestablishing the paper as a modern participant in civic life.

A monumental response to the grandeur of the adjacent and iconic 30th Street Station, the original building was simple but powerful: an elevated volume wrapped in a smooth masonry skin sits atop slender stainless steel columns, forming an expansive horizontal eastern facade, marked by subtle asymmetry and assertive signage.

Restoring Monumentality

While deep floor plates, limited natural light, and closed views may have worked for a newspaper in the 1950s, a 21st-century research space demanded reconsideration of the building envelope. In repositioning the building as the first component of the emerging Schuylkill Yards innovation district, Brandywine’s goal was to attract ground-breaking, entrepreneurial life science tenants.

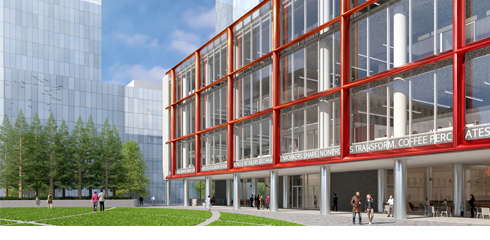

This translated to replacing the building’s primary facade, which in a 1993 renovation had been altered, greatly diminishing the power of Howe’s design. An expansive new glazed wall dramatically increases natural light and view, providing well-lit, vibrant loft spaces with views of landscape, rail station, and city beyond.

Performative Typography

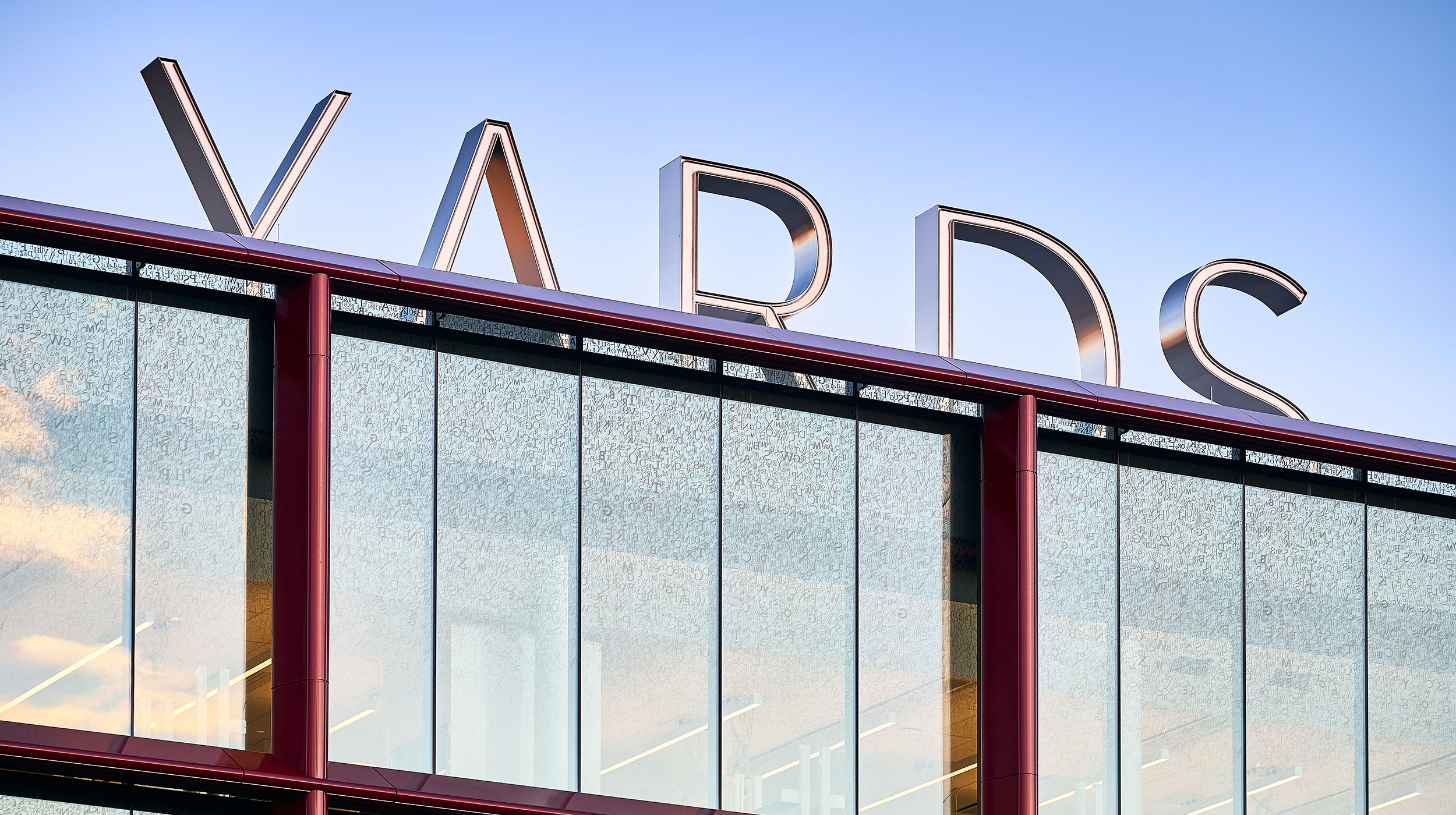

To balance the needs of visual comfort, energy savings, and bird safety, KieranTimberlake developed a custom ceramic frit design for the new east facade that honors the Bulletin Building’s publishing history.

Performative Typography

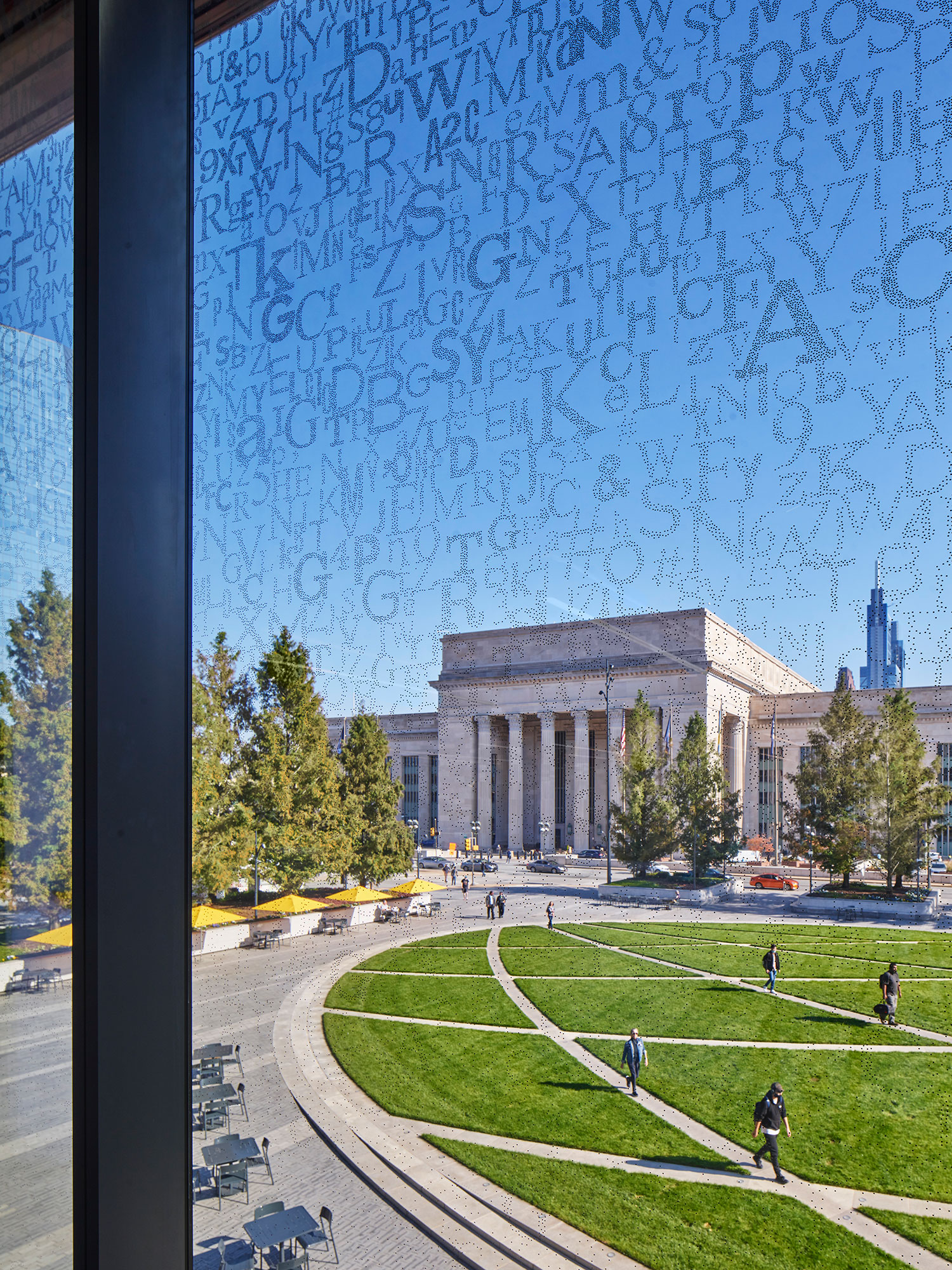

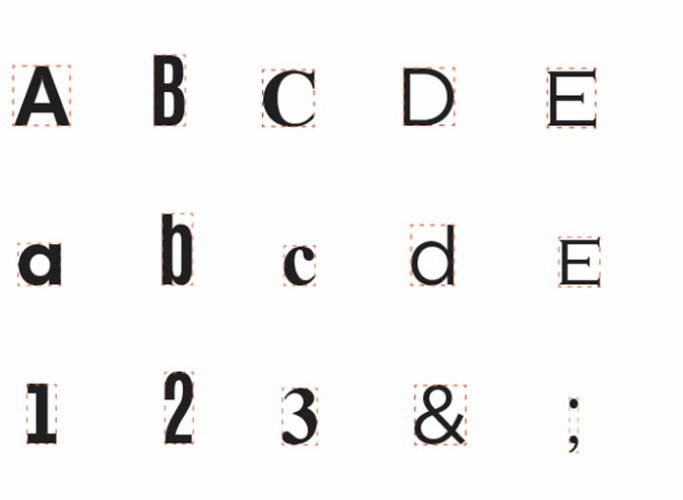

To balance the needs of visual comfort, energy savings, and bird safety, KieranTimberlake developed a custom ceramic frit design for the new east facade that honors the Bulletin Building’s publishing history. This design combines five typefaces used by The Evening Bulletin and arranges them in closely packed randomized patterns that can be tuned to achieve higher density where solar gain and glare control are most needed.

Manually generated graphic prototypes were essential to establishing compositional guidelines to achieve the desired aesthetic qualities, which included limiting the palette to three font sizes, avoiding overlapping characters, and maintaining the appearance of a random collection of type blocks. However, applying these rules to thousands of characters while simultaneoulsy achieving the desired performances objectives would have been impossible without the automation.

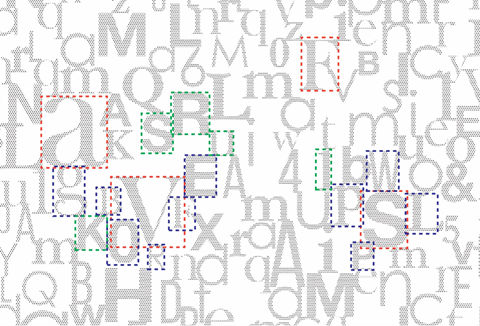

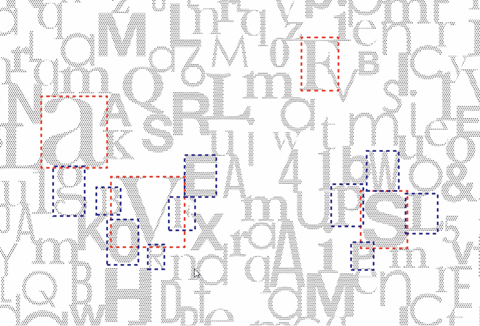

To accomplish these we developed a letter packing algorithm that leveraged the broad range of irregular shapes afforded by the full character set of all five typefaces. By presorting characters based on packing efficiency and establishing large anchor characters around which other characters could aggregate, we were able to achieve much higher packing densities and iterate more efficiently than would have been possible with a brute force randomized approach.

The resulting script allowed us to test out variations that systematically varied letter density over the full height of the insulated glazing units to achieve a subtle supergraphic gradient pattern that balanced performance goals while adhering to a consistent compositional approach.

Back to Bulletin Building Renovation

Read More

Simultaneous histories

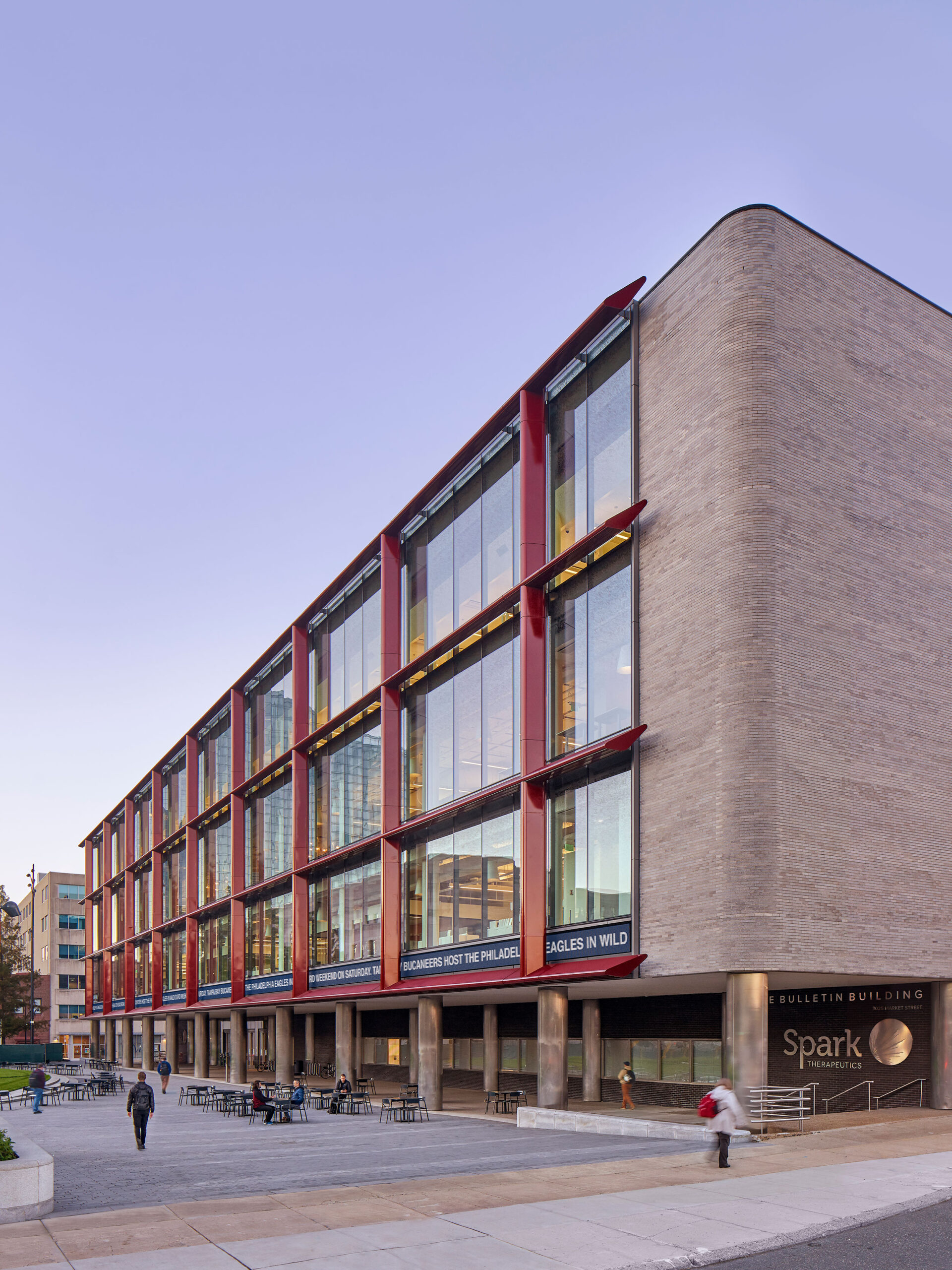

The project gives a fresh identity to the Bulletin while preserving Howe’s original design intent. Glazed masonry along with stainless steel detailing and windows were restored throughout the building, and a carefully proportioned facade was installed on the building’s eastern side.

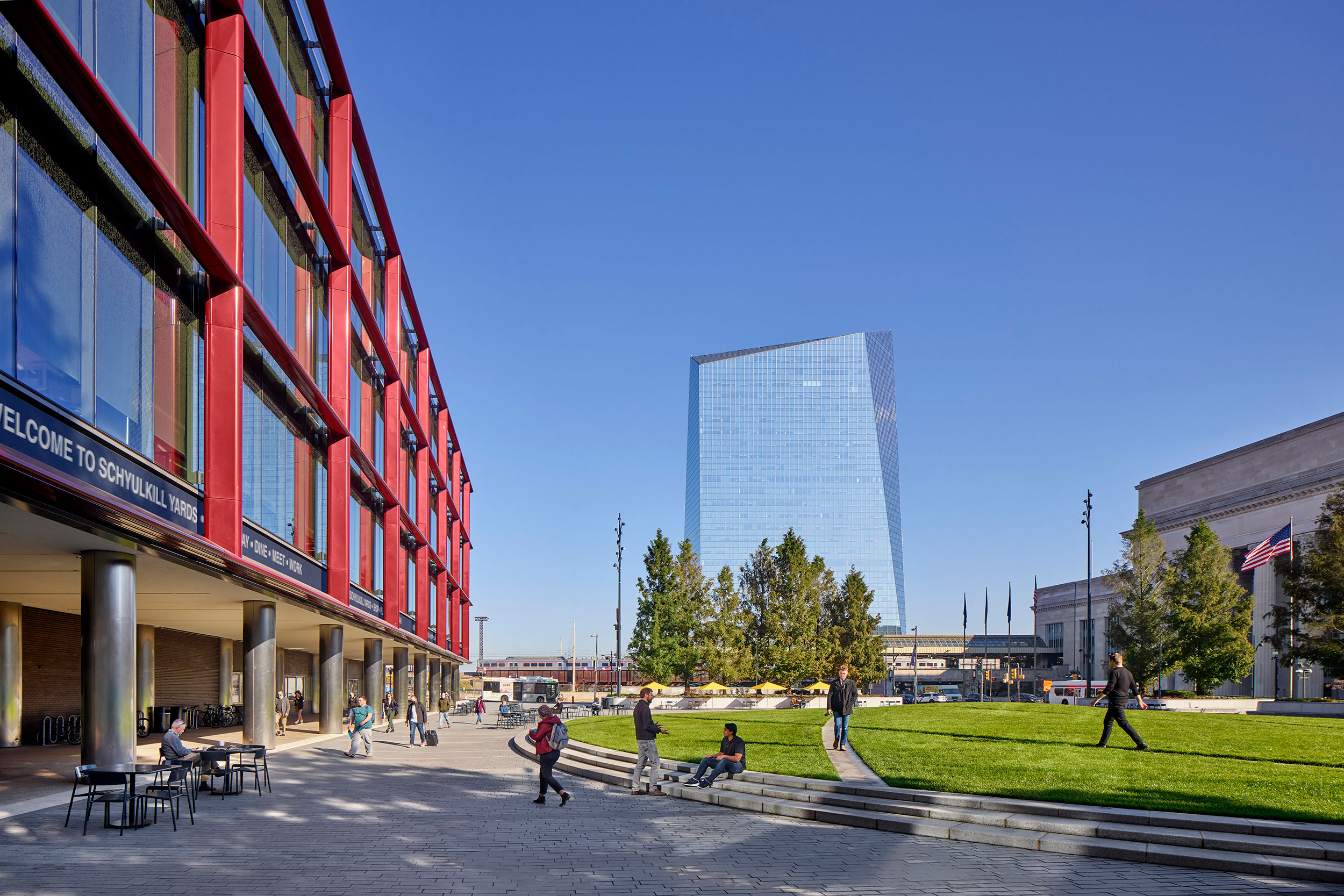

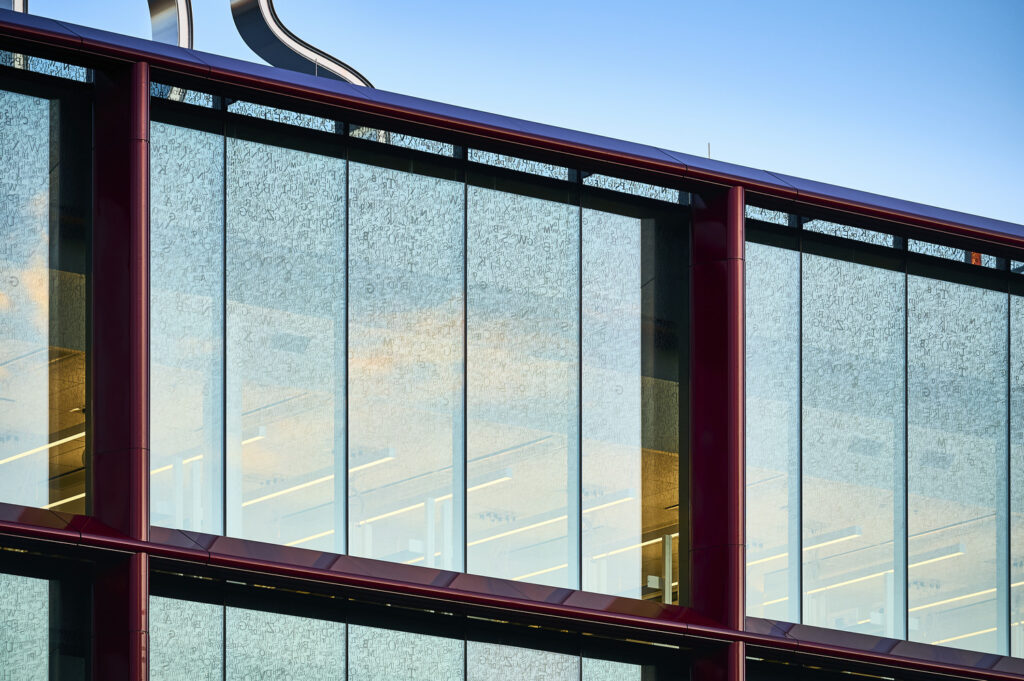

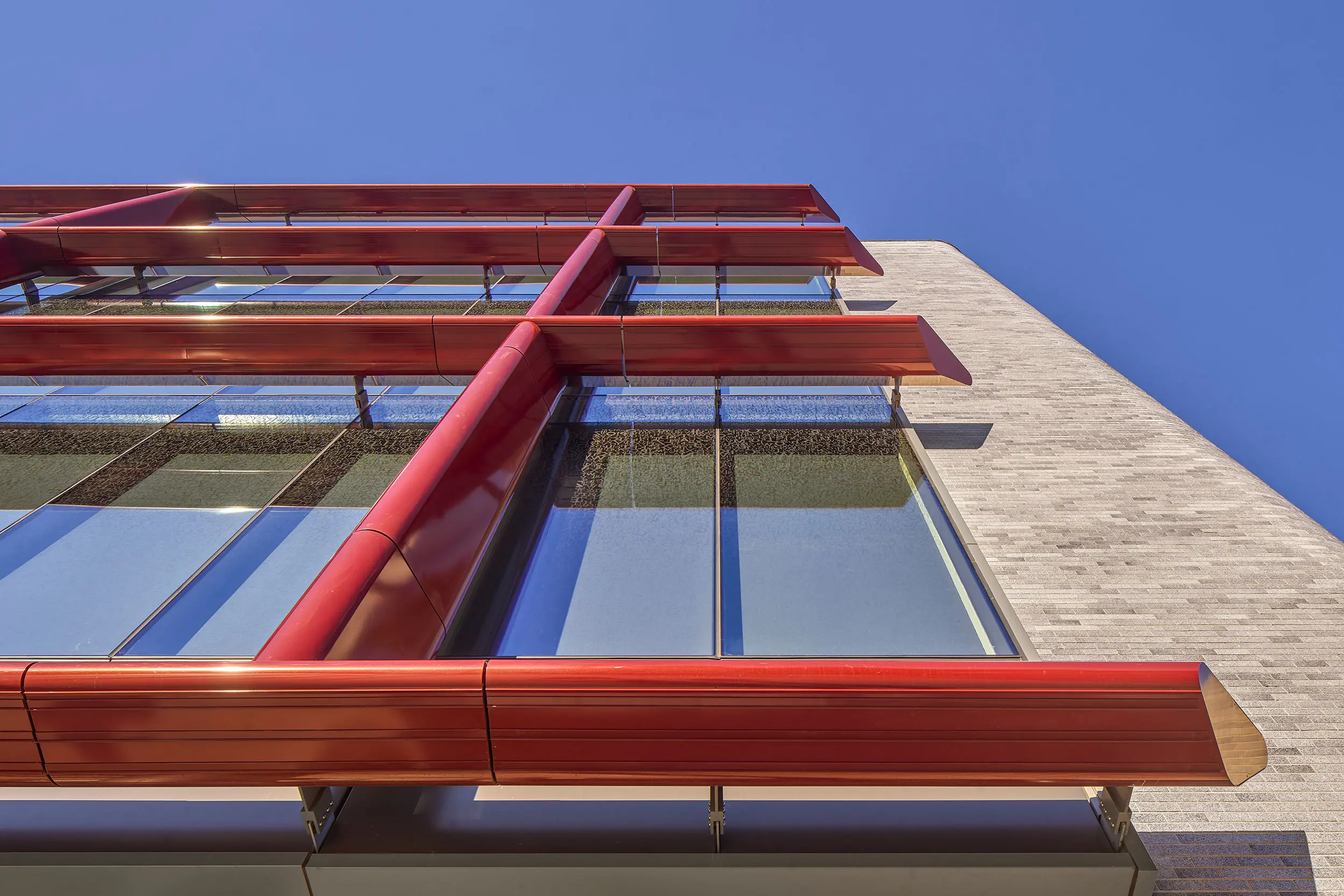

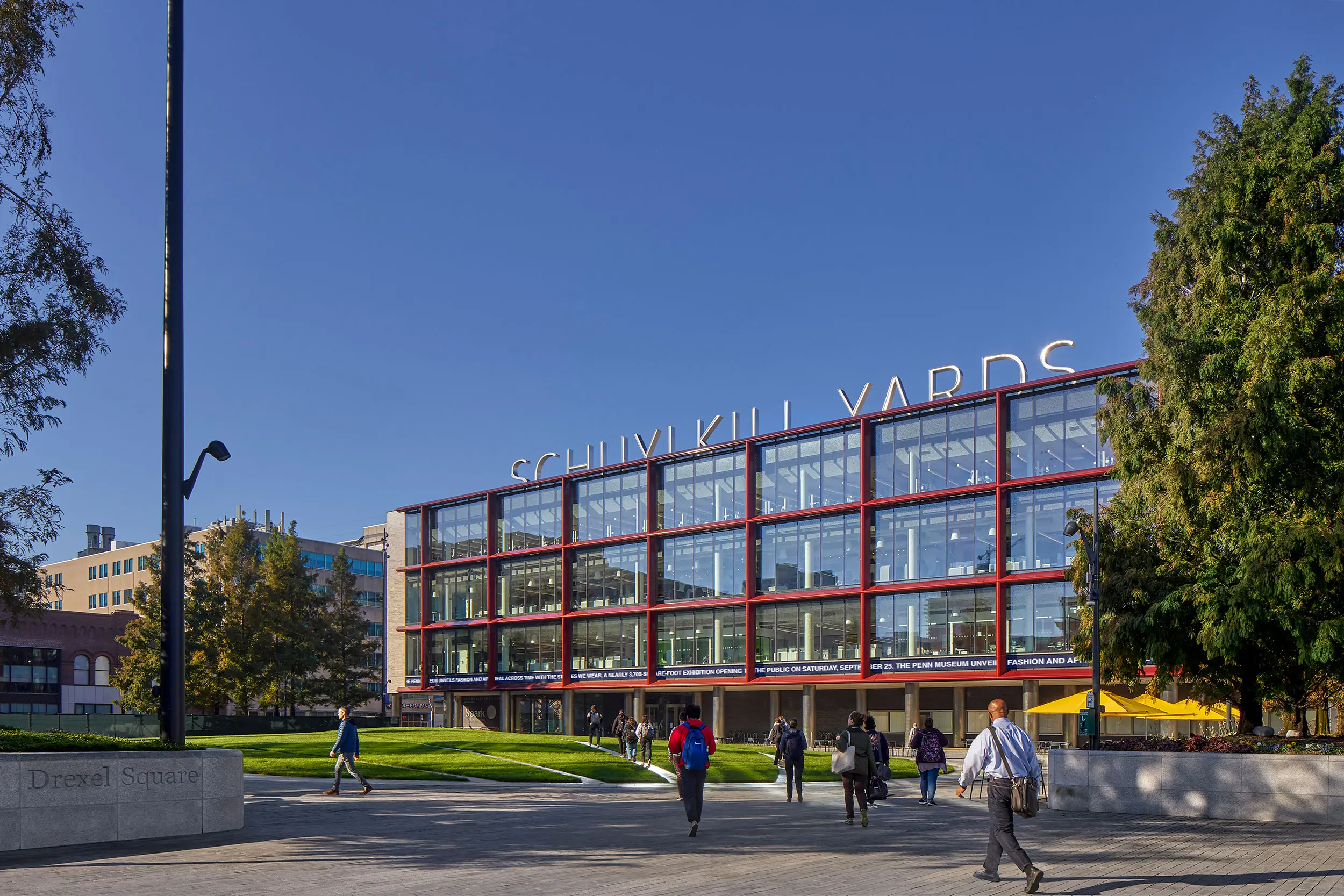

The new high-performance facade, read as a single plane spanning the entire elevation in the spirit of Howe’s original composition, is bold on the urban scale while sensitive to the original architecture. A red aluminum frame hovers in front of the glass, providing shade and drawing facade elements together as a singular gesture. The juxtaposition of new and old establishes a conversation across time, and sets a paradigm for renovation of mid century structures.

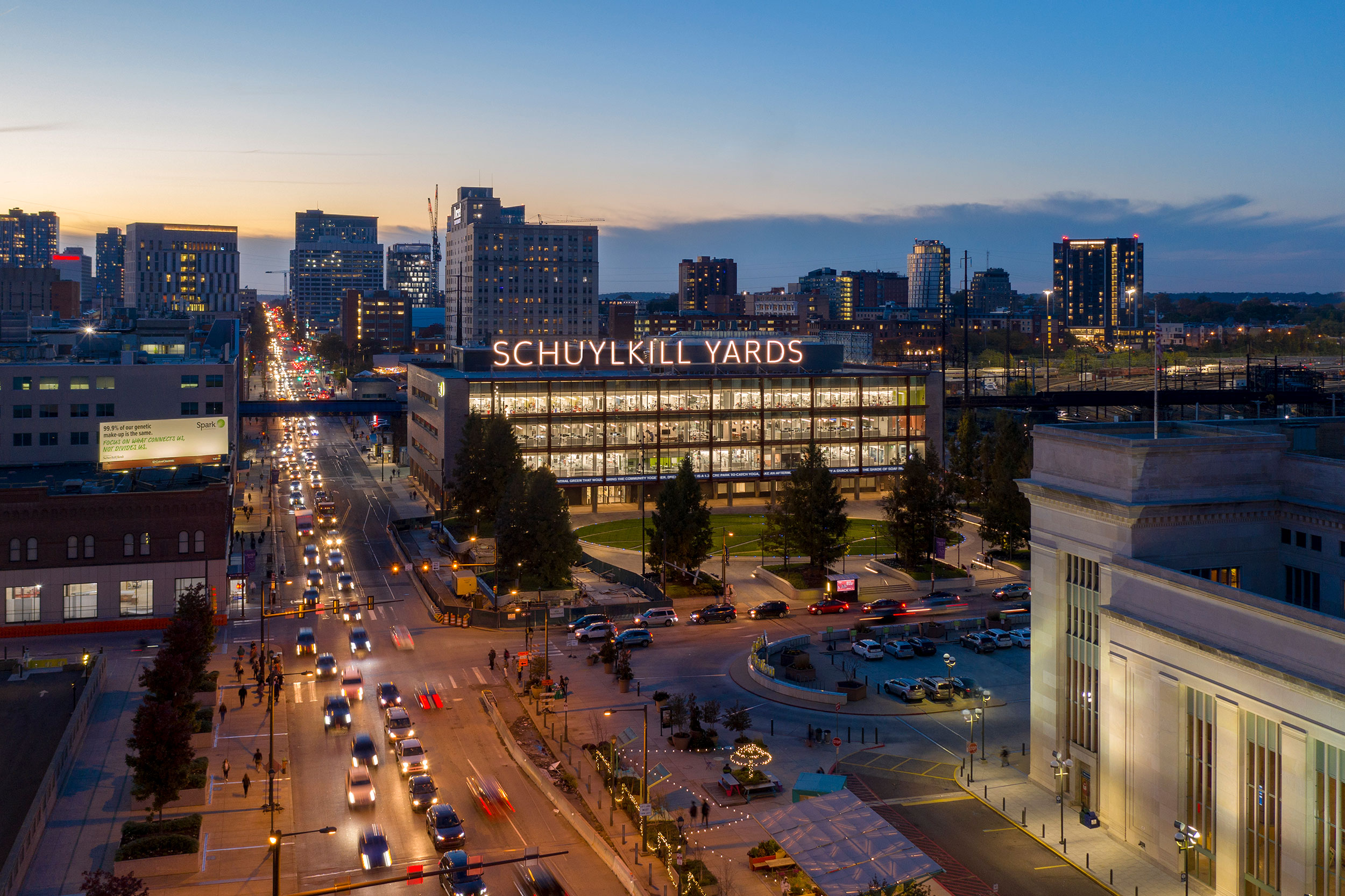

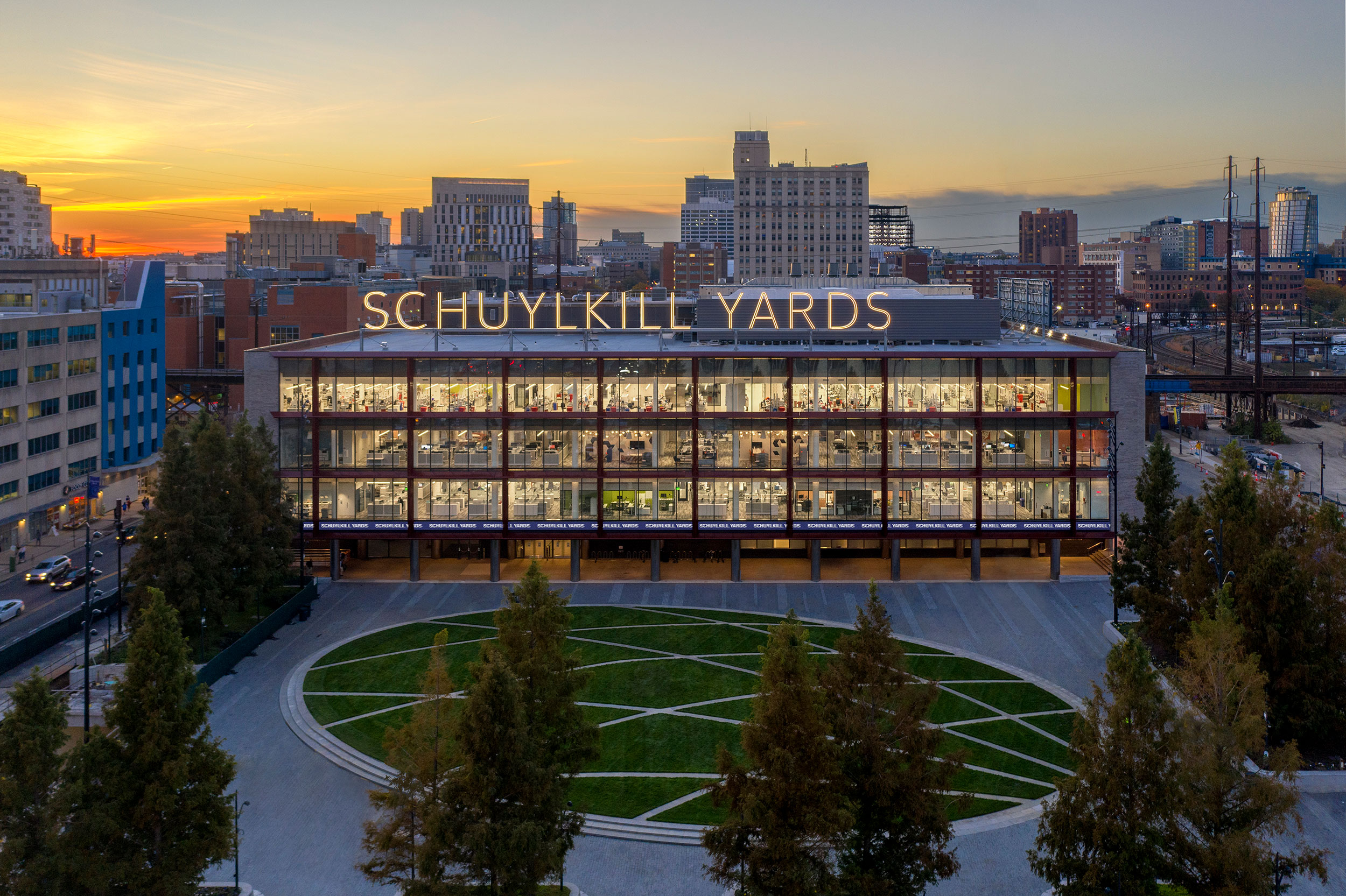

The renovated Bulletin Building, along with the adjacent Drexel Square park (replacing a surface parking lot), form a dynamic centerpiece for the Schuylkill Yards development and a memorable gateway to University City.
